Understanding how conventional fire alarm systems work can help you see why they’re a common choice for keeping buildings safe. These conventional fire systems use established technology to detect fires and alert people, especially in small to medium-sized properties.
TL;DR
Conventional fire alarm systems use zones to show the general area of a fire, not the exact spot. They’re a reliable and cost-effective option for many smaller buildings, using straightforward technology for fire detection and alerts.
Key Takeaways
- Conventional systems divide buildings into zones (e.g., 4 zone or 8 zone conventional panel) to locate fires.
- Core components include a conventional fire alarm control panel, various fire detectors (like conventional smoke and heat detectors), and notification appliances (sounders and visual alarm devices).
- Wiring is typically done in radial circuits, with an End-of-Line (EOL) device to monitor circuit health.
- These systems are generally more affordable for smaller premises compared to addressable system options.
- Regular testing and maintenance are essential to ensure the fire alarm system works correctly when needed.
Understanding Conventional Fire Alarm Systems: The Technology Explained
Conventional fire alarm systems are a familiar sight in many buildings, forming a key part of overall fire safety systems. They’ve been around for a while because they offer a dependable way to detect a fire, particularly in small to medium-sized buildings. This article will walk you through the technology that makes them tick, explaining how each part of the conventional fire alarm equipment works to protect your property and the people in it. You’ll get a clearer picture of their fire safety technology and how they contribute to building safety.
What Defines a Conventional Fire Alarm System?
The main thing that sets a conventional fire alarm system apart is its zone-based approach to detecting fires. This is a fundamental aspect of conventional system principles.
The Zone-Based Approach
Imagine your building is divided into several distinct areas; these are called fire alarm zones. When a detector or manual call point is activated, the fire alarm control panel will tell you which zone the fire is in, but not the exact alarm device. For example, it might say “Fire in Zone 1 (Ground Floor Offices)” rather than “Fire at smoke detector in Office A”. This is because all detectors and call points within a zone conventional fire circuit are wired on the same circuit, often called a radial circuit. This is different from an addressable system, which can pinpoint the exact detector. While simpler and offering less precise location information, this non-addressable method is very effective for smaller areas where quickly identifying a general area is sufficient. Understanding “how conventional fire alarm zones work” is key to grasping their operation, forming the basis of “conventional vs addressable fire alarm basics”. This approach means you can quickly narrow down the search area for a fire.
Typical Applications and Suitability
You’ll often find conventional systems in places like small offices, individual retail units, workshops, smaller schools, and Houses in Multiple Occupation (HMOs). Their suitability for these environments comes down to a couple of key things: they are generally more cost-effective for these smaller building fire systems, and their simpler design is often perfectly adequate. For instance, conventional fire alarm systems can be 30–40% less expensive to install than more advanced addressable fire alarm panels, according to industry insights. This makes them an attractive option for cost-effective fire detection where budgets are a key consideration, without compromising on essential safety.
The Core Technology: Components of a Conventional System
A conventional fire alarm system is made up of several key pieces of hardware working together. Understanding these fire alarm components helps you appreciate how the whole system functions to detect and alert you to a fire.

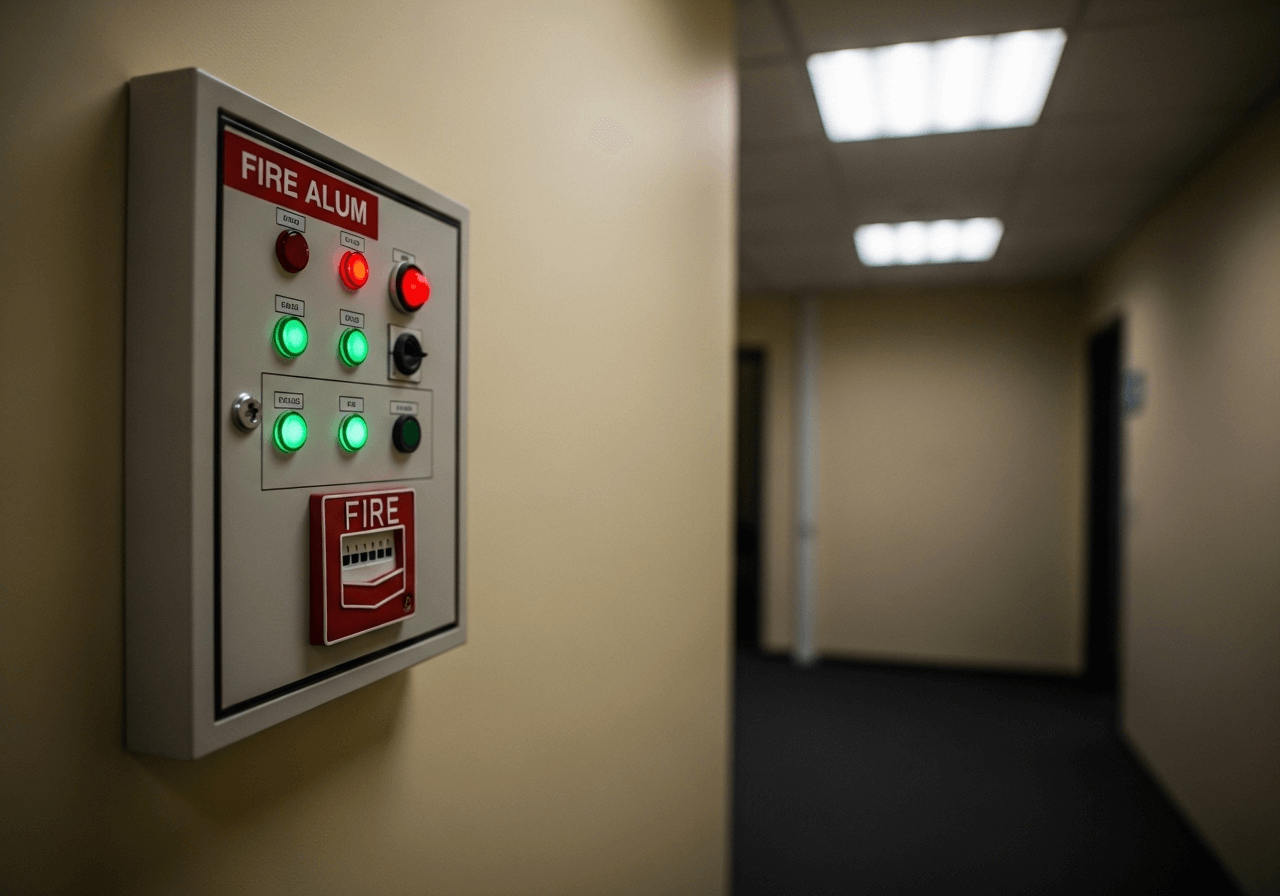

The Fire Alarm Control Panel (FACP): The System’s Hub
The Fire Alarm Control Panel, or FACP, (also known as a conventional fire panel or conventional fire alarm panel) is essentially the brain of your system. Its main job is to constantly monitor all the connected zone circuits for any signals indicating a fire or a fault in the system. When it receives a fire signal, the FACP technology processes this information and then activates the audible alarms (like bells or sirens) and any visual alarm devices (like flashing beacons). It also provides status indications, usually through lights or a small display, showing if the power is on, if there’s an alarm, or if there’s a fault somewhere in the system. An important feature is its power management; it runs on mains power but has a fire panel battery backup to ensure it keeps working even if the mains power fails. This is critical, as backup batteries ensure uninterrupted operation during outages. The user interface is usually straightforward, with buttons to silence or reset the alarm after an incident. Knowing “what does a conventional fire alarm panel do” helps you understand its central role. Popular conventional fire alarm control panels include models from manufacturers like C-TEC (e.g., the C-TEC CFP panel, which can come as a CFP 8 zone version), Kentec (such as the Kentec Sigma CP-R), and others. A repeater panel, like an 8 zone repeater panel, can duplicate the main fire alarm panel’s display elsewhere. The panel usually allows for a wide range of engineering functions including zone test capabilities.
Detection Devices: The Sensing Technology
Detection devices are the “eyes and ears” of your fire alarm system, constantly watching for signs of fire. There are several types, each using different technology.

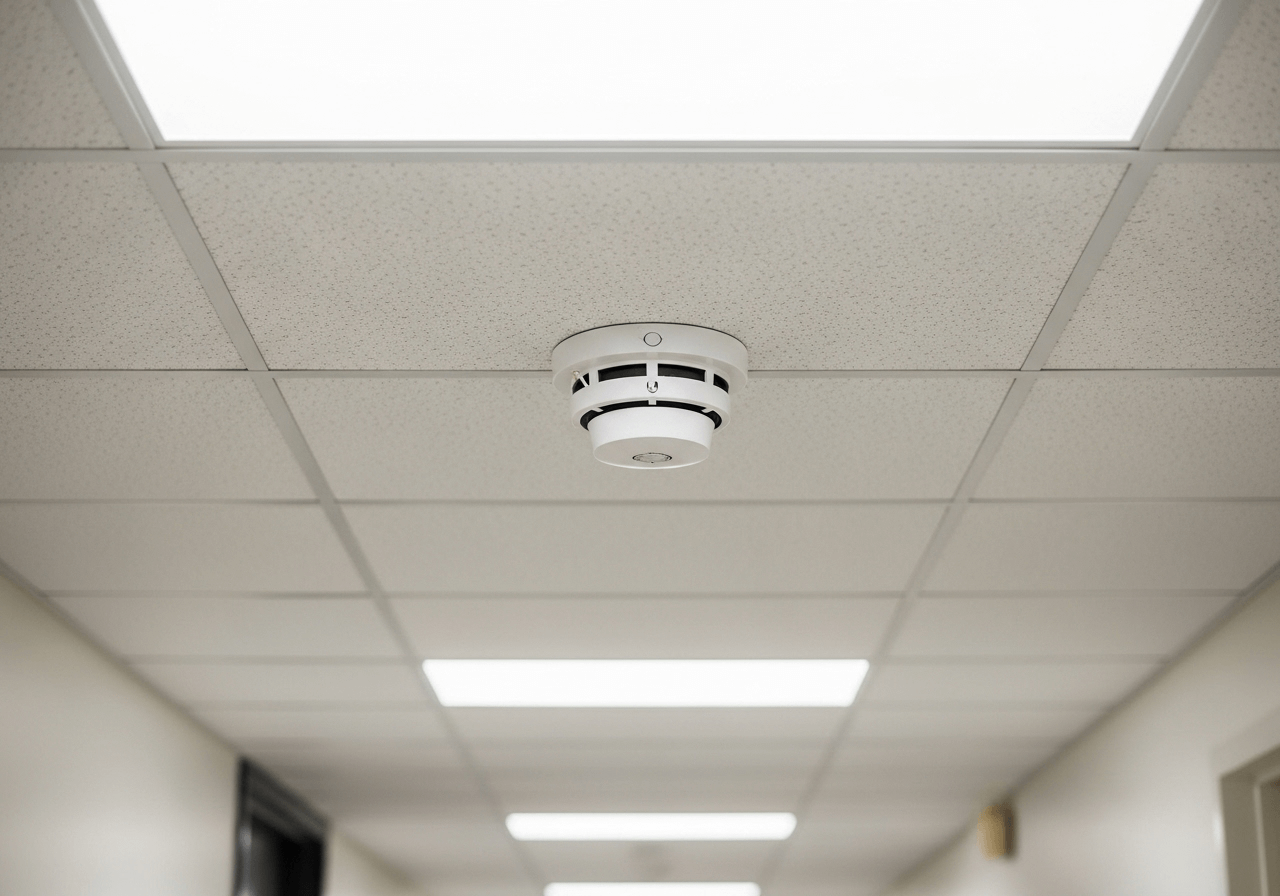

Smoke Detection Technology
Smoke detectors are the most common type of detector you’ll find. In conventional smoke detectors, two main types of smoke detector technology are widely used:
- Optical/Photoelectric Smoke Detectors: These work using a beam of light. Inside the detector, there’s a light source and a sensor. Normally, the light beam doesn’t hit the sensor. When smoke particles enter the chamber, they scatter the light, and some of it hits the sensor, triggering the alarm. Photoelectric fire detectors are generally better at detecting smouldering fires that produce a lot of smoke. Having functional smoke detectors is vital; properties equipped with them experience 50% fewer fire-related fatalities, as noted by The Alarm Masters. An optical smoke detector is a common choice.
- Ionization Smoke Alarms: These use a tiny amount of radioactive material to create a small electric current between two plates. When smoke particles enter the chamber, they disrupt this flow of ions, reducing the current and triggering the alarm. Ionization detectors are typically quicker to respond to fast-flaming fires that produce smaller smoke particles.
Understanding “how optical smoke detectors work in conventional systems” or “ionisation detector technology explained” can help you choose the right type for different areas of your building. Many conventional fire alarm control panels support a range of conventional fire alarm devices from different manufacturers such as Apollo (e.g., their Series 65 range which includes optical smoke detectors and other fire detectors that fit into standard detector bases).
Heat Detection Technology
Sometimes, smoke detectors aren’t suitable, like in dusty or steamy environments such as kitchens, boiler rooms, or workshops, where they might cause false alarms. In these cases, heat detector technology is preferred. Common types of conventional heat alarms include:
- Fixed Temperature Heat Detectors: These are quite simple. They trigger an alarm when the air temperature around them reaches a specific, pre-set level (e.g., 57°C).
- Rate-of-Rise (RoR) Heat Sensors: These conventional heat alarms don’t wait for a fixed temperature. Instead, they react to a rapid increase in temperature over a short period, indicating a quickly developing fire.
Heat detectors are strong and, according to some comparisons, can withstand high-dust or humidity environments better, potentially requiring 30–50% fewer maintenance checks annually than some smarter sensor types. Knowing “when to use heat detectors in conventional fire alarms” is important for designing an effective system. Some systems might use multi-sensor detectors that combine both smoke and heat detectors technology.
Manual Call Points (MCPs) – User-Activated Alarms
Manual Call Points, often called “break glass” units, allow people to manually trigger the fire alarm if they spot a fire before an automatic detector does. The manual call point technology is straightforward: you break a fragile element (often glass, though resettable plastic versions are common now) or push a button. This action completes a circuit, sending a signal to the FACP, which then activates the alarms for that zone. They are an important part of any system, providing a means for fire alarm manual activation.
Notification Appliances: Alerting Occupants
Once a fire is detected, it’s vital to alert everyone in the building. This is the job of notification appliances.
Audible and Visual Alarm Technology
The most common way to alert people is with sound. Fire alarm sounder technology includes traditional bells or, more commonly now, electronic sirens that produce a loud, distinct audible warning sound. For areas where sound alone might not be enough (e.g., noisy environments or for people with hearing impairments), Visual Alarm Devices (VADs) are used. These are typically fire alarm beacons or strobes that flash brightly. Both sounders and visual alarm devices are connected to notification appliance circuits (sounder circuits), powered and activated by the FACP. It’s important that these devices meet standards like BS 5839 (and potentially EN54 for components), which specifies sound levels and coverage areas to ensure everyone is alerted effectively. Understanding “conventional fire alarm sounder wiring” and “visual alarm device technology” is key for proper installation.
Wiring Technology: Connecting the System
How all the components are connected is key for a conventional fire alarm system to work reliably. The wiring technology is relatively simple but needs to be done correctly.
Radial Circuit Technology for Zones
In most conventional systems, detectors and manual call points within a zone are wired using radial wiring (sometimes referred to as Class B wiring in certain regions). This means the cable runs from the FACP, connects to each device in the zone one after the other, and then terminates at the last device with an End-of-Line (EOL) device. This EOL device is usually a resistor or capacitor. The End-of-Line resistor technology is important because it allows the FACP to monitor the circuit for faults. The panel constantly sends a small current through the circuit; if the EOL device isn’t detected (an open circuit, like a broken wire) or if there’s a short circuit, the panel will indicate a fault. This “fire alarm circuit supervision” is a key safety feature. Learning about “conventional fire alarm wiring explained” and the “purpose of EOL in fire systems” helps in understanding system integrity. These are often referred to as zone circuits.

Sounder Circuit Wiring
Sounder circuits, which power the bells, sirens, and beacons, are also typically wired radially and are kept separate from the detection zone circuits. A critical aspect of sounder circuit technology, especially under standards like BS 5839 Part 1, is the need for redundancy. This usually means having at least two sounder circuits (e.g. a 4 zone conventional panel might have two, while a 8 zone panel might offer four conventional sounder circuits). The idea is that if one sounder circuit fails (e.g., due to damage in a fire), the other circuit(s) will still operate, ensuring the alarm can be heard. This fire alarm redundancy is vital for life safety.
Two-Wire (Sav-Wire) System Technology: A Variation
There’s a variation of conventional systems known as “two-wire” or sometimes by brand names like “Sav-Wire” systems (e.g., from C-TEC). The clever part of two-wire fire alarm technology is that it allows detectors, manual call points, and sounders within the same zone to be wired on a single pair of cables running from the conventional two-wire panel. This is achieved by using special detectors and sounders that can differentiate between a detector signal and an alarm activation signal on the same wires (often requiring special detector bases for a separate sounder function). The main benefit is reduced fire alarm wiring, which can save on cable costs and installation time. It’s important to remember that even though they use fewer wires, these are still conventional, non-addressable, zone-based systems. Understanding “how 2 wire conventional fire alarms work” can show you the “advantages of Sav-Wire technology” in certain situations.
Strengths and Weaknesses of Conventional Fire Alarm Technology
Like any technology, conventional fire alarm systems have their good points and some limitations. It’s useful to know these when deciding if it’s the right choice for your property.
Advantages
So, why might you choose a conventional system? There are several benefits of conventional fire alarms:
- Cost-Effectiveness: They generally have a lower upfront cost for both the hardware and the installation, especially in smaller buildings. As mentioned, they can be 30-40% less expensive than addressable systems. This makes them a good option for affordable fire safety.
- Simplicity: The simple fire alarm technology is easier to understand, and basic faults can often be simpler to troubleshoot.
- Strong and Proven: This technology has been around for a long time and is well-tested and reliable.
- Compatibility: Often, there’s wider compatibility between different manufacturers’ conventional devices (like panels and detectors), giving you more flexibility.
Disadvantages
However, there are also some drawbacks of conventional fire alarms and limitations to consider:
- Location Pinpointing: Identifying the exact location of a fire within a zone can be slower, as you only know the general area. This is a key aspect of the limitations of zone-based systems.
- False Alarms: If zones are very large or not well-planned, it can be harder to find the cause of a false alarm, and they might be more susceptible to them.
- Scalability: For larger or more complex buildings, conventional system scalability becomes an issue. The amount of wiring needed increases significantly, and managing many zones (e.g. a 2-8 zone panel vs much larger addressable capacity) can become cumbersome.
- Fault Finding: If a device becomes faulty, you might have to check each one in the zone to find the problem, which can be time-consuming.
Key Considerations for Implementation and Maintenance
Getting a conventional fire alarm system installed and keeping it working properly involves a few important steps.
Installation Technology & Best Practices
When it comes to conventional fire alarm installation, it’s not just about connecting wires. It’s crucial to follow local codes and fire safety standards, such as BS 5839 in the UK. Proper zone planning technology is essential – thinking carefully about how to divide the building into logical zones makes the system more effective. Using the right type of cable, ensuring it’s installed correctly to avoid damage, and placing End-of-Line devices properly are all part of a good installation. It’s worth noting that over 80% of commercial building codes mandate fire alarm installations, highlighting their importance. The panel enclosure should also be suitable for the environment.
Maintenance Technology & Requirements
Once your system is in, maintaining conventional fire alarms is vital for their reliability. This involves regular checks and tests. You’ll need to test detectors (often using simulated smoke or heat), manual call points, the panel functions (like battery health and fault indicators), and the sounders. While the technology might be simpler than addressable systems, routine fire alarm system testing and fire alarm battery maintenance are absolutely necessary. This is also a good time to review your fire risk assessment to ensure the system still meets your building’s needs.
The Future of Conventional Systems & Conclusion
Even with newer technologies available, conventional fire alarm systems still have their place.
Relevance in Modern Fire Safety
Despite the advancements in addressable systems, conventional technology remains relevant for certain market segments. For smaller businesses or properties where budgets are tight and the layout is straightforward, they offer a perfectly adequate and reliable solution. The future of conventional fire alarms lies in their continued use in these specific applications, where their simplicity and cost-effectiveness are major advantages in the overall picture of fire safety technology evolution. They are often ideal for small buildings.
Making an Informed Choice
Hopefully, understanding the technology behind conventional fire alarm systems helps you feel more empowered to make informed decisions about your fire safety needs. For many small to medium-sized applications, they provide a dependable and reliable fire detection solution that doesn’t break the bank. When you’re considering your options, knowing how these systems work, their strengths, and their limitations will help you in choosing conventional fire alarms that are right for your specific situation. You can explore various fire alarms to see what fits your needs.
