GuardPoint10 access control.
Installed by certified partners.
Sensor Access Technology's GuardPoint10 platform brings access control, alarm management, and video under a single interface — open protocol, cloud-connected, and scalable from one door to a multi-building estate. Triple Star are authorised GP10 installers across South East London and Kent.
The questions your current access control system probably can't answer.
Most access control platforms look similar in a brochure. The differences that matter — offline resilience, multi-site control, integration depth, and what you actually own — show up in practice. Here's where GuardPoint10 stands apart.
Your cameras, alarms, and doors in one screen — not three separate logins.

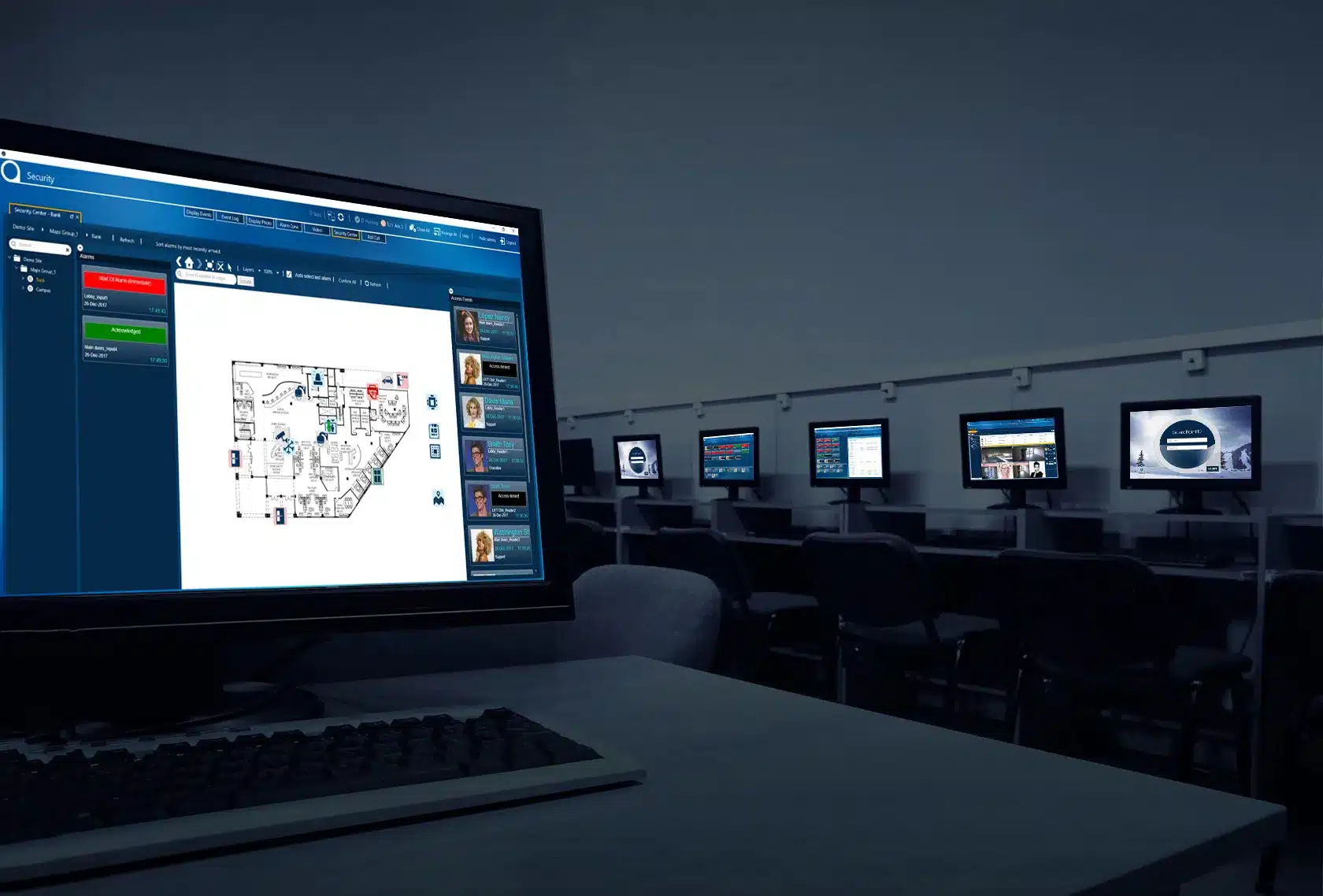

GP10's Security Centre places live camera feeds, alarm inputs, and access events on a single graphical site map. When a credential fails at an outer door at 11pm, you see it — in context, immediately — without switching between systems. For facilities managers responsible for multiple buildings, this changes the nature of the job.
The audit trail keeps running even when your server doesn't.
GP10 controllers store up to two million access events locally — completely independent of network or server availability. If connectivity fails or maintenance is required, records continue uninterrupted. When you need to demonstrate who was in the building at a specific time — to an insurer, a regulator, or your own management — the log is there.
Your existing cameras and readers aren't automatically redundant.
GuardPoint10 is built on open protocols — OSDP, Wiegand, and ONVIF. It's designed to work alongside hardware you already have. Legacy readers, third-party cameras, and existing alarm inputs can often be integrated into the GP10 platform. Triple Star assesses hardware compatibility at survey stage, before a quote is issued.
Six buildings managed centrally, with local control still intact at each site.
The GP10 multi-site module gives a single administrator management of permissions, event views, and reports across multiple buildings — while each site retains full local autonomy. For managed property portfolios and organisations with branch offices, this removes the need for separate systems and separate contracts at every location.
The system that grows alongside your building — without locking you into a proprietary ecosystem.
GuardPoint10 scales from a single door to 128+ readers without a platform change. Start with card-based entry today. Add biometrics, lift restriction, visitor management, or vehicle ANPR as your building's requirements develop. Because GP10 runs on open protocols and a published REST API, it also integrates with HR software, student management systems, building management platforms, and applications your organisation already uses. You are not tied to a closed ecosystem.
From site survey to signed-off system — nothing left to chance.
Every GuardPoint10 installation by Triple Star follows the same four stages. System logic, integrations, and user hierarchies are all specified in writing before a cable is run.
Site Survey & Access Audit
Every access point assessed, legacy hardware reviewed for retention, security zones mapped. Controller count, reader types, and integration scope confirmed before design work begins.
GP10 System Design
Access zones, time rules, Global Reflexes automations, and integration requirements all specified before installation begins. Lift restrictions, visitor workflows, and alarm linkages designed up front.
Installation & Integration
Controllers, readers, and locking hardware installed by SSAIB-accredited engineers. Third-party CCTV, intruder detection, and BMS integrations managed in the same programme of works.
Commissioning & Handover
Every access point individually verified. Every integration tested end-to-end. Full as-built documentation, compliance records, and hands-on training issued before our engineers leave site.
One platform. Not four systems pretending to talk to each other.
GuardPoint10 is Sensor Access Technology's proprietary software, built to integrate access control, alarm management, video, and building automation into a single interface — no middleware dependencies, no separate VMS licences, no third-party dashboards bolted on as an afterthought.
- Security Centre — graphical site map with live door, camera, and alarm icons; actionable decisions without switching screens
- Multi-Site Module — centralised management across buildings; each site retains independent local control
- Global Reflexes — drag-and-drop cause-and-effect automation; define what happens when a door is forced or a credential fails
- Lift Integration — floor-by-floor access restriction; full DOAS support for KONE, Mitsubishi, and OTIS lift systems
- REST API — open interface for integration with HR systems, student management, BMS, and custom applications

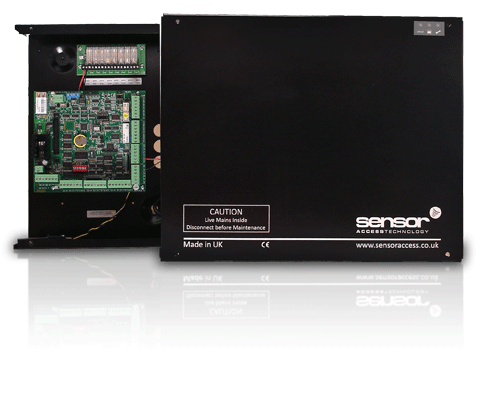

IC4001 — 4-door, 4-reader intelligent controllerBuilt to the same standard as the software it runs.
Sensor Access Technology designs and manufactures their own controllers and readers to work natively with GuardPoint10 — no third-party hardware dependency at the controller level. Triple Star specifies and installs the right hardware combination for your site's physical requirements and credential preferences.
- IC2001 — 2-door controller — 4-reader capacity; ideal for smaller sites or distributed deployments
- IC4001 — 4-door controller — 4-reader capacity; stores up to 2 million events locally, independent of server or network
- SensorProx DESFire readers — Mifare DESFire EV1/EV2; encrypted; resistant to credential cloning
- BioPlus W2 biometric — fingerprint; live finger detection; IP67/IK09 housing for demanding environments
- Bluetooth, NFC, and QR readers — smartphone credentials; temporary visitor access issued remotely; no physical token required
Built for the complexity of real buildings.
The combination of open protocols, offline resilience, and flexible credential options makes GP10 practical across building types and sectors that simpler access control platforms can't serve well.
Commercial Offices
Role-based floor access, time-schedule restrictions, and GP10-VMS visitor management at reception. Lift integration restricts tenants to their own floors. Contractors check in digitally and receive a QR credential without involving reception for every arrival.
Education
Campus-wide access management with GP10's API connecting to student information systems — cardholders added automatically. MobileGuard provides real-time roll call during fire evacuation without a paper register.
Healthcare
Role-based zone restrictions prevent patient areas from being accessed by unauthorised personnel. Audit-ready access logs support inspection requirements. Biometric readers eliminate shared-PIN vulnerabilities in secure clinical environments.
Residential & Build-to-Rent
Fob, smartphone, or QR-based entry for residents. Visitor and contractor management without permanent credentials. All resident events logged and retained to your data retention policy.
Retail & Logistics
UHF or LPR readers for vehicle access to loading bays. Staff shift-based scheduling prevents back-of-house access outside permitted hours. High cardholder counts managed efficiently through GP10's scalable architecture.
Government & Local Authority
Triple Star's GP10 installation at Harrow Council — integrating third-party readers, QR credentials, and API connections — was nominated for an ECA Best Fire and Security Project award. Public sector audit and multi-site management requirements fully supported.
GuardPoint10 Software Platform
| Platform type | Integrated access control, alarm management, and video management |
| Deployment | On-premise server; web module available for HTML5 browser access from any device |
| Scalability | Single door to 128+ readers; enterprise multi-site without platform change |
| Security Centre | Graphical site map; live door, camera, and alarm icons; drag-and-drop customisation |
| Multi-site module | Centralised management across buildings; local branch autonomy retained |
| Lift integration | Low-level and high-level DOAS; KONE, Mitsubishi, OTIS lift systems supported |
| Global Reflexes | Drag-and-drop cause-and-effect automation; triggers: email, door state, alarm, camera PTZ |
| Areas module | Real-time occupancy monitoring per zone; configurable capacity thresholds |
| Video integration | Milestone, IDIS, Avigilon, Hikvision, OnSSI, Dahua, SureView, Qognify, TVT |
| Roll call / muster | Included; integrates with MobileGuard Android app for real-time evacuation accountability |
| API | Open REST API; Python module (pyGuardPoint) available on PyPI |
Door Controllers — IC2001 & IC4001
| IC2001 | 2-door, 4-reader intelligent controller |
| IC4001 | 4-door, 4-reader intelligent controller |
| Offline event storage | Up to 2,000,000 access events stored locally — independent of server or network |
| Reader protocols | Wiegand (26-bit and custom); OSDP v2 |
| Alarm monitoring | Door contact, request-to-exit, tamper inputs included |
| Networking | TCP/IP; distributed installation across multiple buildings supported |
| Third-party readers | Industry-standard Wiegand and OSDP readers from other manufacturers supported |
| Wireless controller | Available — real-time communication with wireless sensors and authorised devices |
Reader Technologies
| SensorProx DESFire | Mifare DESFire EV1/EV2; encrypted credential; resistant to cloning |
| BioPlus W2 biometric | Fingerprint; quad-core CPU; live finger detection; IP67/IK09-rated housing |
| Bluetooth / NFC | Smartphone credential support; contactless; STid MobileKey compatible |
| QR code readers | Wiegand output; smartphone and printed QR codes supported |
| UHF / STid | Long-range vehicle access; fast-track for car parks and gated entrances |
| LPR camera | Licence plate recognition; integrates directly with GP10 access database |
| Multi-technology readers | Multiple credential formats processed at a single reader surface |
Visitor Management — GP10-VMS
| Registration | Digital sign-in terminal or tablet; building policy digital signature included |
| Badge printing | Printed visitor badge: name, photo, visit details, host |
| Credentials issued | QR code via email or Bluetooth MobileKey to visitor's smartphone |
| Host notification | Email or text on visitor arrival; stage-based alerts as visitor progresses |
| Multi-site | Supported — visitor flows managed across multiple buildings from one dashboard |
| GDPR compliance | Designed in line with UK GDPR; configurable data retention and automatic deletion |
| GP10 integration | Visitor credentials flow directly into GuardPoint10 access control — no manual step |
Integration & Compliance
| Reader protocols | OSDP v2, Wiegand (26-bit and custom formats) |
| Video protocol | ONVIF (profiles S and T) |
| API | REST API; JSON; Python module (pyGuardPoint on PyPI) |
| Third-party platforms | SmartSpaces, Equiem, Timeware, Honeywell Galaxy, DOM UK, Assa Abloy, STid Mobile ID, Cathexis |
| Wireless locking | DOM UK smart cylinder locks — real-time event data transmitted back to GP10 |
| Access control standard | BS EN 60839-11-1 — access control systems for use in security applications |
| Application guidelines | BS EN 60839-11-2 — access control application guidelines |
| Wiring regulations | BS 7671 — IET Wiring Regulations, 18th Edition |
| Data protection | UK GDPR — ICO guidance applies to GP10-VMS visitor data processing |
| Triple Star accreditations | SSAIB, BAFE, ECA, ISO 9001, GateSafe, FSA |
The system is only as reliable as the company that installed it.
Triple Star has been designing and installing access control systems since 2006. Daren Pool, our Managing Director, sits on BSI technical committees — the same committees that shape the standards your access control system is expected to meet. Sensor Access Technology identify Triple Star by name on their own website, citing specifically our capability to integrate third-party readers, QR credentials, and API-connected applications alongside native GP10 hardware.
The Harrow Council GP10 installation — carried out by Triple Star — was nominated for an ECA Best Fire and Security Project award. It is the kind of reference that matters when you're choosing an installer.
Named by Sensor Access Technology. Triple Star is identified on the manufacturer's own website as an installation partner — not a generic reseller listing.
ECA award-nominated project. The Harrow Council GP10 installation was shortlisted for ECA Best Fire and Security Project — independently judged.
Single accountable partner. Triple Star installs GP10 alongside IDIS CCTV and RISCO intruder alarms — one service contract, one point of contact for the full security system.
Full documentation on completion. As-built drawings, commissioning records, and user training issued before our engineers leave site — not sent later.
Authorised Sensor Access Technology Installer
Certified partner for GuardPoint10 access control — design, supply, installation, and maintenance across South East London and Kent. SSAIB-accredited. ECA member.
Sensor Access Technology — Product Documentation
Full hardware specifications, software module detail, and integration guides — no email required.
